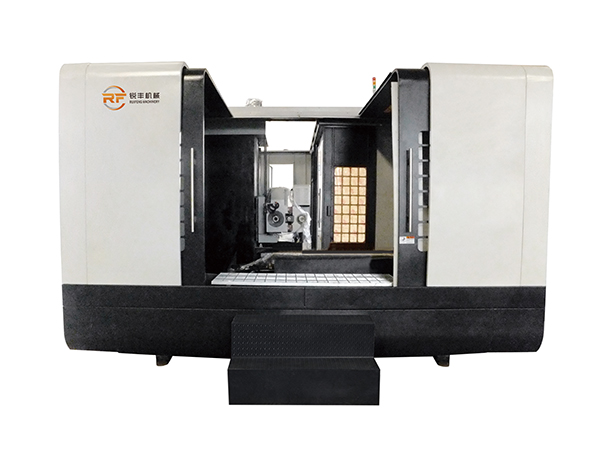

钻铣复合深孔钻（型号：RFDX1008-1000 RFDX1512-1500 RFDX2012-1500 )
RFDX系列深孔钻，是集铣削，深孔加工于一体的多功能数控机床。
二、主要特点

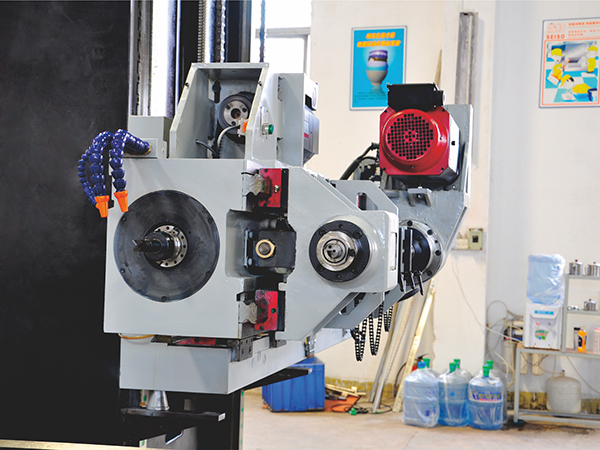

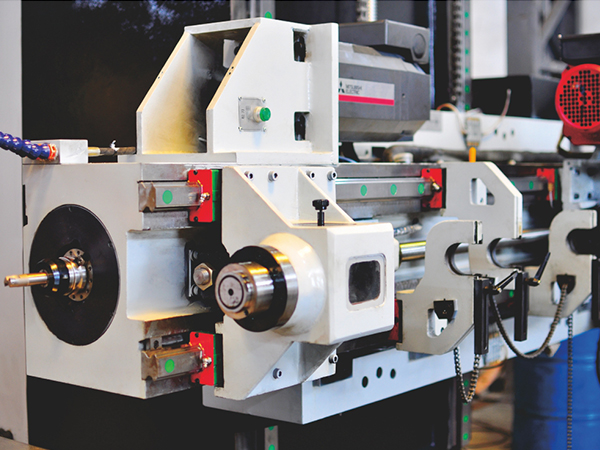

1. 具有独立铣削主轴，一次装夹实现钻削、刚性攻牙、铣削加工。
2. 选配回转工作台，减少工件装夹次数，并可钻斜孔。

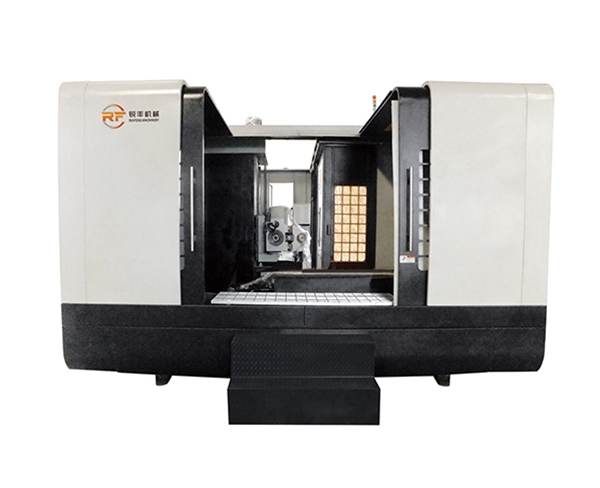

三、产品详情
四、 技术参数
以下是OFFICE 版本的文档（请下载使用）
| RFDX钻铣复合系列深孔钻 RFDX SERIES DRILLING AND MILLING COMPOUND MILLING MACHINE | |||||
| 技术参数 TECHNICALPARAMETERS | |||||
| 钻铣复合系列深孔钻 | RFDX | RFDX | RFDX | ||

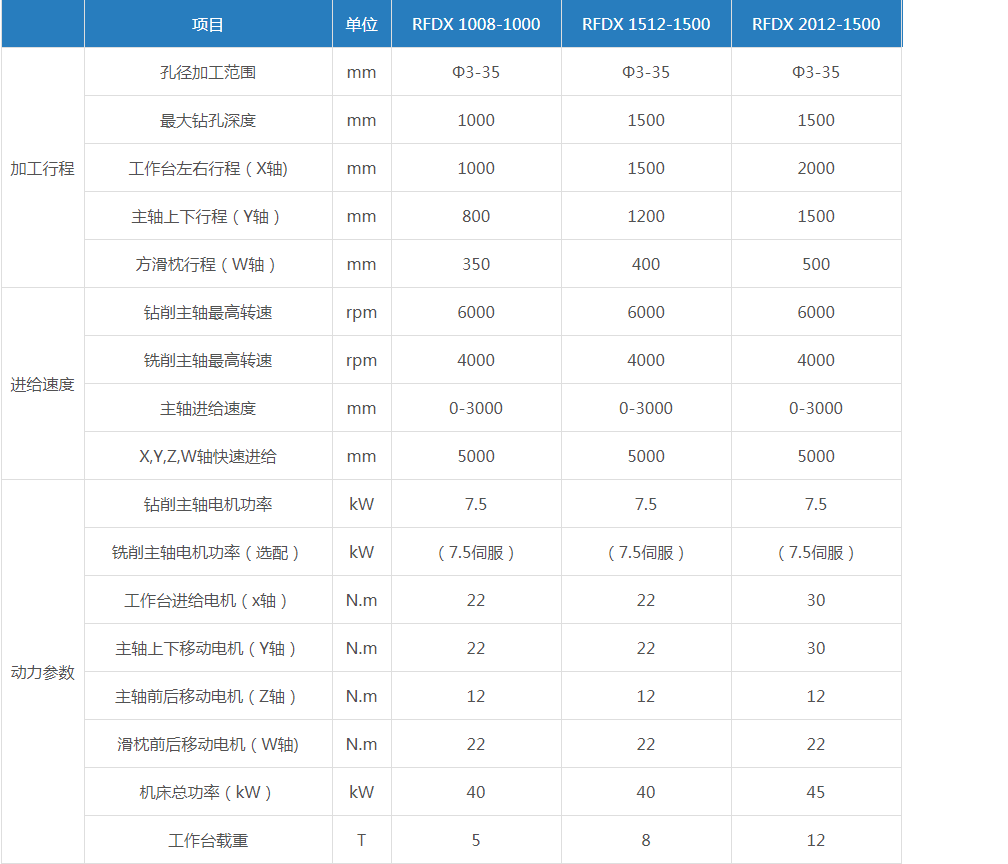

| 项 ⽬ | 单 位 | RFDX1008-1000 | RFDX1512-1500 | RFDX2012-1500 | |
| 加⼯⾏程Processing tracel | 孔径加⼯范围Diameter of processed hole | mm | Φ3-35 | Φ3-35 | Φ3-35 |
| 最⼤钻孔深度Maximum drill hole depth | mm | 1000 | 1500 | 1500 | |
| ⼯作台左右⾏程（X轴）Travel of work bench(X-axis) | mm | 1000 | 1500 | 2000 | |
| 主轴上下⾏程（Y轴）Travel of sliding platform (Y-Axis) | mm | 800 | 1200 | 1500 | |
| ⽅滑枕⾏程（W轴）The ram stroke (W-axis) | mm | 350 | 400 | 500 | |
| 进给速度Feedspeed | 钻削主轴最⾼转速Highest drilling spindle speed | rpm | 6000 | 6000 | 6000 |
| 铣削主轴最⾼转速Highest. milling spindle speed | rpm | 4000 | 4000 | 4000 | |
| 主轴进给速度Spindle feed speed | mm | 0-3000 | 0-3000 | 0-3000 | |
| X.Y.Z.W轴快速进给X.Y.Z.W axis feed quickly | mm | 5000 | 5000 | 5000 | |
| 动⼒参数Dynamic parameter | 钻削主轴电机功率Drilling spindle motor power | kW | 7.5 | 7.5 | 7.5 |
| 铣削主轴电机功率（选配）The_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x0001_milling_x0001_spindlemotorpower(optional) | kW | （7.5伺服） | （7.5伺服） | （7.5伺服） | |
| ⼯作台进给电机（X轴）Table feed motor (X-axis) | N.m | 22 | 22 | 30 | |
| 主轴上下移动电机（Y轴）The spindle motor to move up and down (Y-axis) | N.m | 22 | 22 | 30 | |
| 主轴前后移动电机（Z轴）Motor spindle moved back and forth (z-axis) | N.m | 12 | 12 | 12 | |
| 滑枕前后移动电机（W轴）Ram before and after the mobile motor shaft(W-axis) | N.m | 22 | 22 | 22 | |
| 机床总功率（kW）Themachinetotalpower | kW | 40 | 40 | 45 | |
| ⼯作台载重The workbench load | T | 5 | 8 | 12 | |
| 其他Other | ⼯作台⾯积（⻓X宽）Tabl size(length X width) | mm | 1200X800 | 1700X1200 | 2200X1200 |
| 冷却液压⼒范围Cooling fluid pressure range | Mpa | 2-10 | 2-10 | 2-10 | |
| 冷却液流量范围Coolant flow range | L/min | 6-80 | 6-80 | 6-80 | |
| 机床外形尺⼨（⻓X宽X⾼）Machine tool overall dimensions (LXWXH) | mm | 5200X3600X2850 | 6000X4800X3450 | 6500X6000X3500 | |
| 机床重量Machine weight | T | 13 | 15 | 21 | |
| 机床控制系统Machine control system | 台湾新代SYNTEC/三菱/发那科FANUC | ||||
| 本公司机床不断进⾏研发改良，如有更改规格恕不另⾏通知。本资料图⽚仅供参考，以实际产品样为准。www.ruifengjixie.xin | |||||
| 产品特点： | |||||
| RFDX钻铣复合系列深孔钻简述 | |||||
| RFDX系列深孔钻，是集铣削，深孔加⼯于⼀体的多功能数控机床。RFDX series deep hole drilling is a multi function CNC machine with milling and deep hole machining | |||||
| 1.具有独⽴铣削主轴，⼀次装夹实现钻削、刚性攻⽛、铣削加⼯。Equipped With independent milling spindle once clamping drilling rigid tapping and milling | |||||
| 2.选配回转⼯作台，减少⼯件装夹次数，并可钻斜孔。Equipped With rotating work bench to reducethe clamping timers of workpiece and drill inclined hole. | |||||
