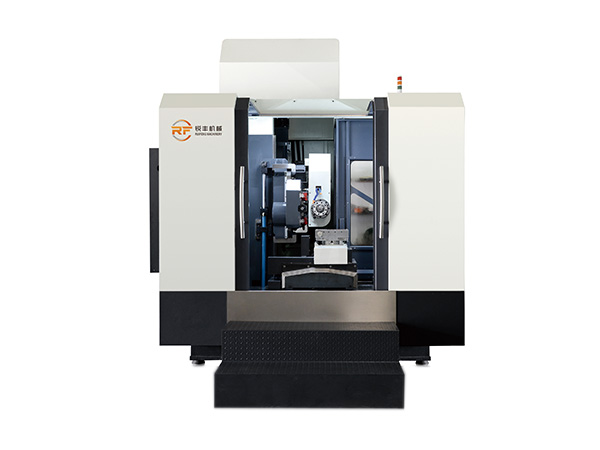

五六轴深孔钻（型号：RFD6ZX0505-500 RFD6ZX1512-1300 RFD6ZX2515-1500 RFD6ZX3015-1500 )
六轴钻铣深孔钻简述
六轴钻铣深孔钻，配有4条直线和2条数旋转控轴，具有铣削、钻孔功能专为复杂模具加工而设计。
二、 应用领域
汽车模具仪表盘、保险杆、门板、热压成型，大型箱体零件等复杂零件。
三、主要特点

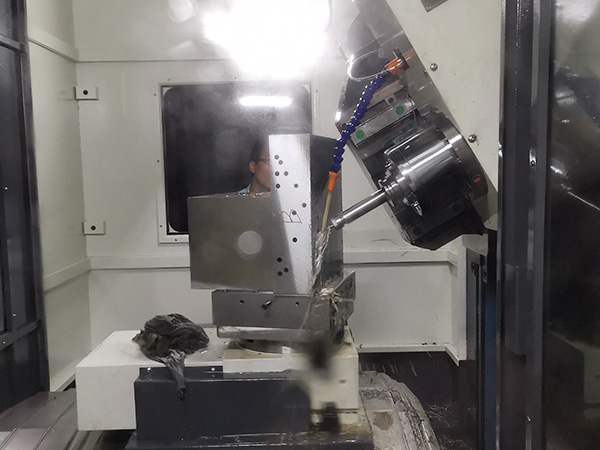

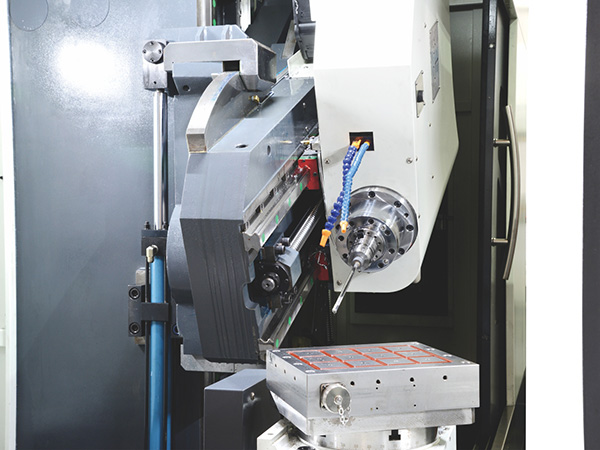

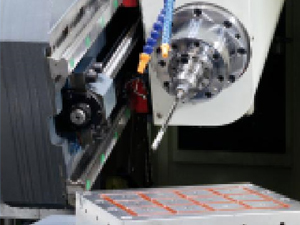

1.主轴(A轴)向上20度，向下30度高精度旋转。实现复合角度加工。
2.主轴具有强力铣削功能。
3.可配喷吸钻，实现高效率、高精度、高光洁度的大孔加工。

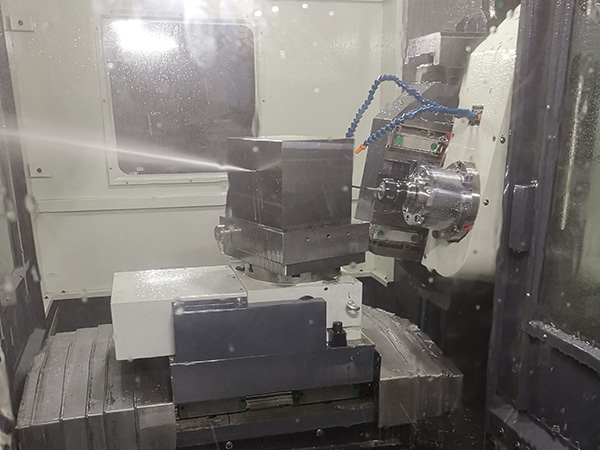

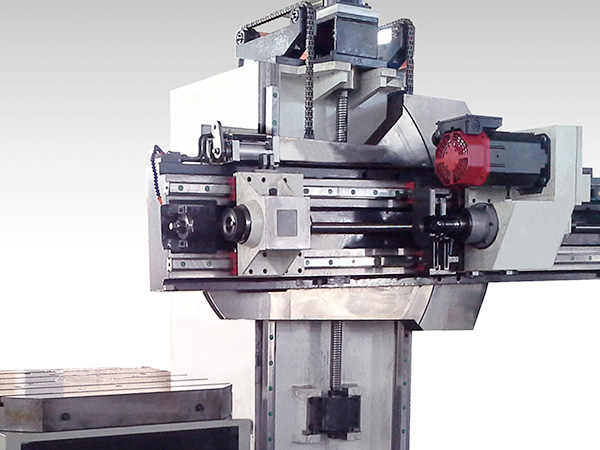

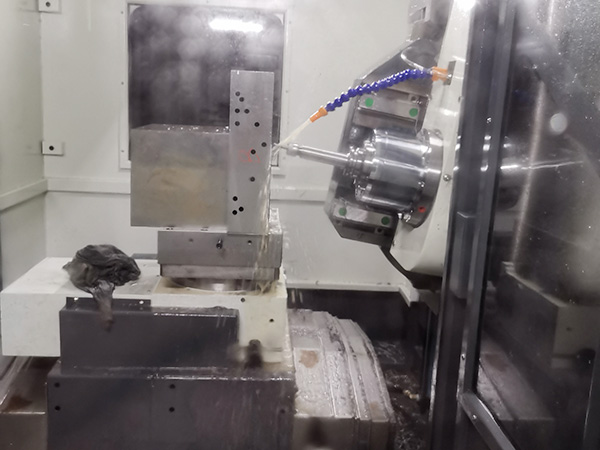

四、 产品详情
五、 技术参数
以下是OFFICE 版本的文档（请下载使用）

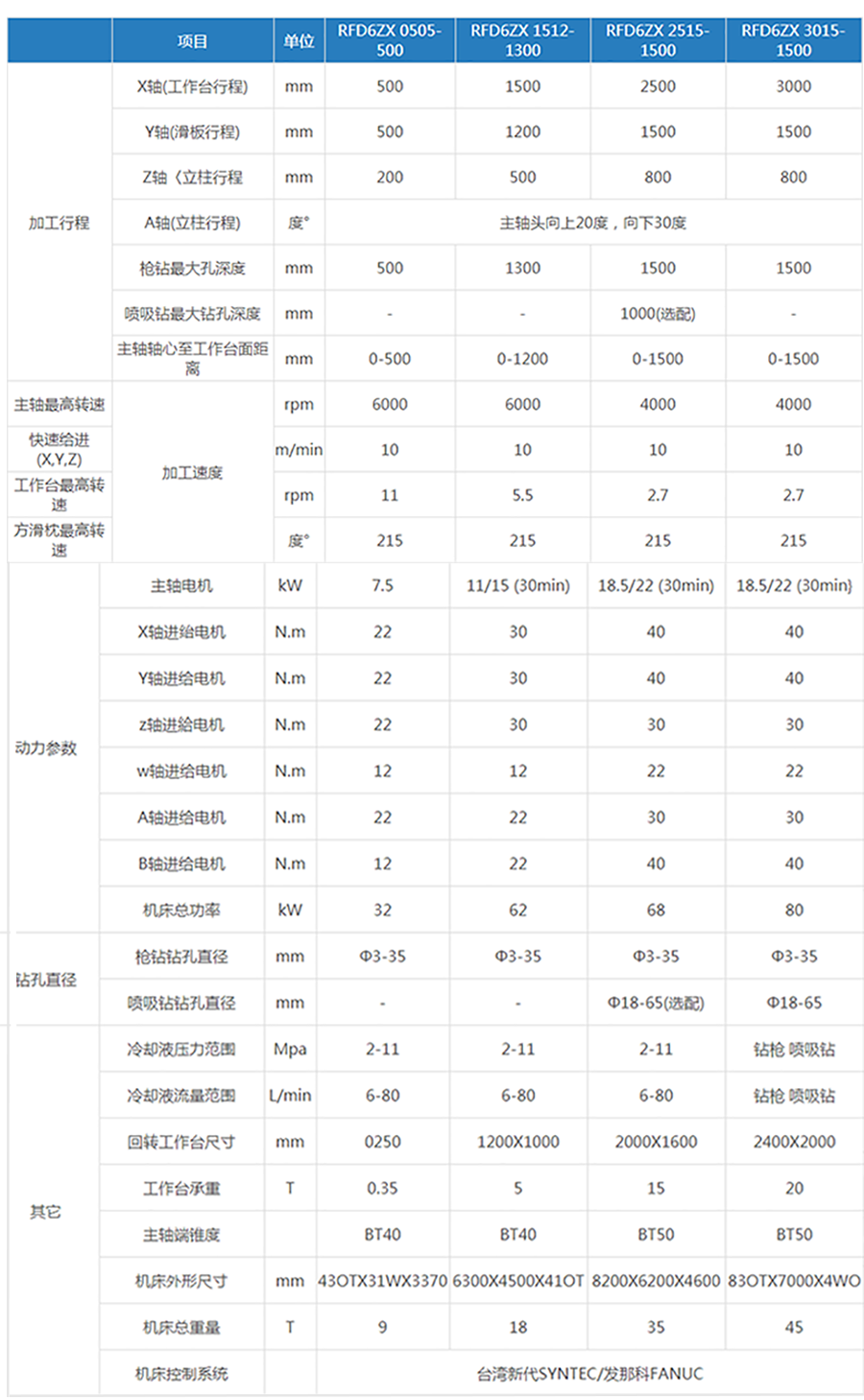

| RFD6ZX 系列六轴钻铣深孔钻 RFD6ZX SERIES 6-AXIS DRILLING | ||||||
| 技术参数 TECHNICAL PARAMETERS | ||||||
| RFD6ZX | RFD6ZX | RFD6ZX | RFD6ZX | |||
| 项⽬ | 单位 | 0505-500 | 1312-1300 | 2515-1500 | 3015-1500 | |
| 加⼯⾏程 | X轴（⼯作台⾏程）X-axis(travel of work bench) | mm | 500 | 1300 | 2500 | 3000 |
| Y轴（滑板⾏程）Y-axis (travel of sliding plate) | mm | 500 | 1200 | 1500 | 1500 | |
| Z轴（⽴柱⾏程）Z-axis (travel of vertical pillar) | mm | 200 | 500 | 800 | 800 | |
| A轴（⽴柱⾏程） | 度° | 主轴头向上20，向下30度 The main shaft head up 20°and down 30° | ||||
| 枪钻最⼤孔深度Maximum drill depth of gun drill | mm | 500 | 1300 | 1500 | 1500 | |
| 喷吸钻最⼤钻孔深度Maximum drill depth of spray and absorb drill | mm | 1000（选配）selective | ||||
| 主轴轴⼼⾄⼯作台⾯距离Distance from the center of main shaft to the surface of work bench | mm | 0-500 | 0-1200 | 0-1500 | 0-1500 | |
| 加⼯速度processing | 主轴最⾼转速Maximum rotating of main shaft | rpm | 6000 | 6000 | 4000 | 4000 |
| 快速给进（X.Y.Z)Fastfeeding | m/min | 10 | 10 | 10 | 10 | |
| ⼯作台最⾼转速Maximum rotating speed work banch | rpm | 11 | 5.5 | 2.7 | 2.7 | |
| ⽅滑枕最⾼转速Maximum rotating speed of square guide way | 度° | 215 | 215 | 215 | 215 | |
| 动⼒参数Dynami cparameter | 主轴电机Motor of main shaft | kW | 7.5 | 15/18.5（30min） | 18.5/22（30min） | 18.5/22（30min） |
| X轴进给电机X-axis feeding motor | N.m | 22 | 30 | 40 | 40 | |
| Y轴进给电机Y-axis feeding motor | N.m | 22 | 30 | 40 | 40 | |
| Z轴进给电机Z-axis feeding motor | N.m | 22 | 30 | 30 | 30 | |
| W轴进给电机 W-axis feeding motor | N.m | 12 | 12 | 22 | 22 | |
| A轴进给电机A-axis feeding motor | N.m | 22 | 22 | 30 | 30 | |
| B轴进给电机 B-axis feeding motor | N.m | 12 | 22 | 40 | 40 | |
| 机床总功率Total power of machine tool | kW | 32 | 62 | 68 | 80 | |
| 钻孔直径Diameter of drill hole | 枪钻钻孔直径Drilling diameter of gun drill | mm | Φ3-35 | Φ3-35 | Φ3-35 | Φ3-35 |
| 喷吸钻钻孔直径Drilling diameter of spray and absorb drill | mm | - | - | Φ18-65（选配）selective | Φ18-65 | |
| 其它Other | 冷却液压⼒范围Pressure scope of cooling liquid | Mpa | 2-11 | 2-11 | 2-11 | 钻枪 Gun drill 2-11喷吸钻 Spray and absorb drill 1.0-1.7 |
| 冷却液流量范围Flowrate scope of cooling | L/min | 6-80 | 6-80 | 6-80 | 钻枪Gundrill6-80 | |
| 回转⼯作台尺⼨ Sizeof rotating table | mm | Φ250 | 1200X1000 | 2000X1600 | 2400X2000 | |
| ⼯作台承重Load-bearing of work banch | T | 0.35 | 5 | 15 | 20 | |
| 主轴端锥度 Taper of main shaft end | BT40 | BT40 | BT50 | BT50 | ||
| 机床外形尺⼨External size of machine tool | mm | 4300X3180X3370 | 6300X4500X4100 | 8200X6200X4600 | 8300X7000X4600 | |
| 机床总重量Total_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x0001_weight_x0001_ofmachinetool | T | 9 | 18 | 35 | 45 | |
| 机床控制系统Machinetoolcontrolsystem | 台湾新代SYNTEC/发那科FANUC | |||||
| 本公司机床不断进⾏研发改良，如有更改规格恕不另⾏通知。本资料图⽚仅供参考，以实际产品样为准。 | ||||||
| RFD6ZX系列六轴钻铣深孔钻简述 | ||||||
| RFD6ZX六轴钻铣深孔钻，配有4条直线和2条数控轴，具有铣削、钻孔功能专为复杂模具加⼯而设计 Multi shaft mold conveying waterCNC milling machine is integrating milling and deep-hole processing | ||||||
| 产品特点： | ||||||
| RFD6ZX六轴钻铣深孔钻，配有4条直线和2条数控轴，具有铣削、钻孔功能专为复杂模具加⼯ | ||||||
| Multi shaft mold conveying water CNC milling machine is integrating milling and deep-hole processing and makes it possible to achieve multiple surfaces and working proce dures at one-time clamping. | ||||||
| APPLICATIONFIELD/_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x0001_应⽤领域：汽⻋模具仪表盘、保险杆、⻔板、热压成型，⼤型箱体零件等复杂零件。 | ||||||
| FEATURES/主要特点： | ||||||
| 1.主轴（A轴）向上20度，向下30度⾼精度旋转。实现复合⻆度加⼯。Highprecisionrotationofmainshaft(shaftA)up20degreesanddown30degrees.Compoundanglemachiningisrealized. | ||||||
| 2._x005f_x005f_x005f_x005f_x005f_x005f_x0001_主轴具有强⼒铣削功能。The main shaft features powerful milling function (cutter disc may be installed). | ||||||
| 3.可配喷吸钻，实现⾼效率、⾼精度、⾼光洁度的⼤孔加⼯。 | ||||||
| Equipped with spary and absorb drill to achieve high efficiency and high precision high fineness large-hole processing. | ||||||
